Random permutations for multiple comparisons

Here we perform dependent sample ttest for every voxel. we have two measurements per subject, one before and one after some task (alpha1 and alpha2. We run the ttest in the end but first we compote the ttest with random run order, so for subject 1 we take alpha1 - alpha2 and for subject 2 the other way around. then we see if we still have main effect, and what size of clusters we get if we mask with a fixed threshold. We run it n times and make a distribution of the maximum t value and maximum cluster size. In the end we see if the real ttest yielded an extreme t value anywhere or whether the clusters are extremely big.

Set N permutations and Threshold
Run the permutations
Making the real ttest
randpermute.py: prepare a template text file for for ANOVA F test
Running randpermute.py with a shell script

Set N permutations and Threshold

n=100;
tThresh=2.044;

Run the permutations

clustSize=zeros(n,2);
if exist('tMinMax.txt','file')
    !rm tMinMax.txt
end
if exist('Post_Pre_Norm+tlrc.BRIK','file')
    !rm Post_Pre+tlrc*
end
if exist('neg+tlrc.BRIK','file')
    !rm neg+tlrc*
    !rm pos+tlrc*
end

!ls quad*01 -d > ls.txt
LSA=importdata('ls.txt');
!rm ls
for permi=1:n
    if exist('TTnew+tlrc.BRIK','file')
        !rm TTnew+tlrc*
    end
    rnd1=round(rand(1,length(LSA))+1);
    rnd2=rnd1*-1+3;
    setA='-setA r1 ';
    setB='-setB r2 ';
    for subi=1:length(LSA)
        setA=[setA,LSA{subi},'r1 ',LSA{subi},'/alpha',num2str(rnd1(subi)),'+tlrc '];
        setB=[setB,LSA{subi},'r1 ',LSA{subi},'/alpha',num2str(rnd2(subi)),'+tlrc '];
    end
    % next two lines run 3dttest++, one permutation
    command = ['~/abin/3dttest++ -paired -no1sam -mask ~/SAM_BIU/docs/MASKbrain+tlrc ',setA,setB];
    [~, ~] = unix(command);
    % read min and max t value
    !~/abin/3dBrickStat -min -max TTnew+tlrc'[1]' >> tMinMax.txt
    % compute volume of largest positive and negative clusters
    eval(['!~/abin/3dcalc -a TTnew+tlrc''','[1]''',' -exp ''','ispositive(a-',num2str(tThresh),')*a''',' -prefix pos'])
    eval(['!~/abin/3dcalc -a TTnew+tlrc''','[1]''',' -exp ''','isnegative(a+',num2str(tThresh),')*a''',' -prefix neg'])
    eval(['!~/abin/3dclust -quiet -1clip ',num2str(tThresh),' 5 125 neg+tlrc > negClust.txt'])
    eval(['!~/abin/3dclust -quiet -1clip ',num2str(tThresh),' 5 125 pos+tlrc > posClust.txt'])
    negClust=importdata('negClust.txt');
    posClust=importdata('posClust.txt');
    if iscell(negClust)
        negClustSize=0;
    else
        negClustSize=negClust(1)/125;
    end
    if iscell(posClust)
        posClustSize=0;
    else
        posClustSize=posClust(1)/125;
    end
    clustSize(permi,1:2)=[negClustSize,posClustSize];
    !rm neg+tlrc*
    !rm pos+tlrc*
    !rm *Clust.txt
end
clustSize=[clustSize(:,1);clustSize(:,2)];
clustSize=sort(clustSize,'descend');
% take the 5% greatest volumes (in voxels) as critical cluster size
critClustSize=clustSize(ceil(0.05*n*2));
% take the 5% extreme (max and -1*min) t values as criticat t
tList=importdata('tMinMax.txt');
tList=[-tList(:,1);tList(:,2)];
tList=sort(tList,'descend');
critT=tList(ceil(0.05*n*2));
!rm tMinMax.txt

rm: cannot remove `Post_Pre+tlrc*': No such file or directory
rm: cannot remove `ls': No such file or directory
++ 3dcalc: AFNI version=AFNI_2011_12_21_1014 (Mar  1 2013) [64-bit]
++ Authored by: A cast of thousands
++ Output dataset ./pos+tlrc.BRIK
++ 3dcalc: AFNI version=AFNI_2011_12_21_1014 (Mar  1 2013) [64-bit]
++ Authored by: A cast of thousands
++ Output dataset ./neg+tlrc.BRIK
.
.
.
++ Authored by: RW Cox et al
++ 3dclust: AFNI version=AFNI_2011_12_21_1014 (Mar  1 2013) [64-bit]
++ Authored by: RW Cox et al

Making the real ttest

rnd1=ones(1,length(LSA));
rnd2=rnd1+1;

setA='-setA r1 ';
setB='-setB r2 ';
for subi=1:length(LSA)
    setA=[setA,LSA{subi},'r1 ',LSA{subi},'/alpha',num2str(rnd1(subi)),'+tlrc '];
    setB=[setB,LSA{subi},'r1 ',LSA{subi},'/alpha',num2str(rnd2(subi)),'+tlrc '];
end
% making the real ttest
command = ['~/abin/3dttest++ -paired -no1sam -prefix Post_Pre -mask ~/SAM_BIU/docs/MASKbrain+tlrc ',setA,setB];
[~, ~] = unix(command);

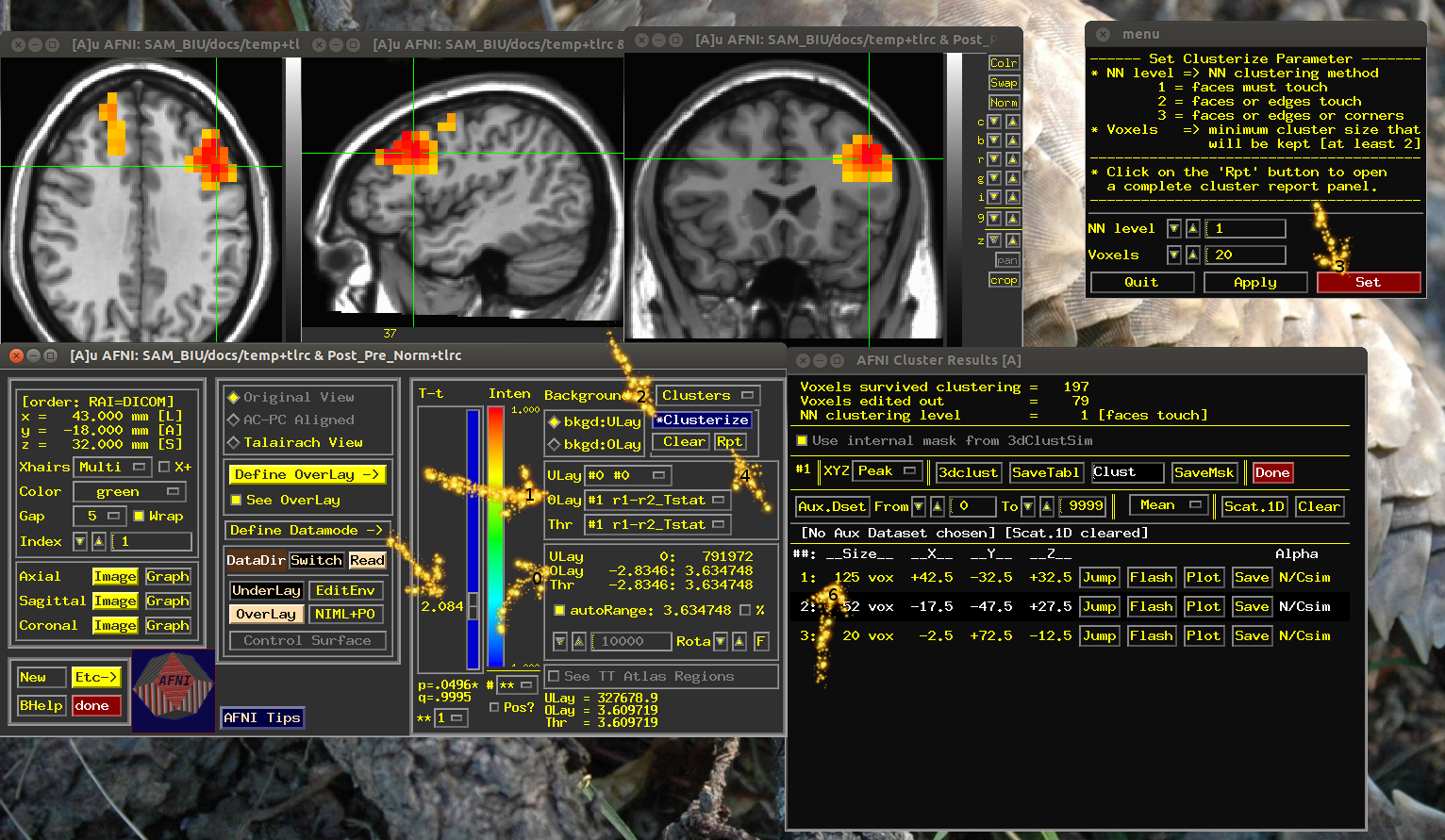

% now open AFNI and view Post_Pre+tlrc.
% to see if you have sig voxels check the range of the overlay (see arrow0). Note, there
% are two images there, means difference (brik[0]) and t values (brik[1]).
% choose [1] in Define Overlay (Arrow1).
% to see if you have large clusters set the threshold to tThresh (arrow with no number), click on
% clusterize (arrow2), set (arrow3), Rpt (arrow4). Look at the list for
% cluster size (arrow6).
!~/abin/afni -dset ~/SAM_BIU/docs/temp+tlrc

Thanks go to PSF Bellgowan for "quick" questions

Initializing: X11.
++++++++ IMAGE SAVE SETUP WARNINGS ++++++++
++ Can't find program mpeg_encode for Save to MPEG-1
++ Can't find program cjpeg for Save to JPEG
++ Can't find program gifsicle OR whirlgif for Save to Animated GIF
++ To disable these warnings, set environment
++  variable AFNI_IMSAVE_WARNINGS to 'NO'.
+++++++++++++++++++++++++++++++++++++++++++
. Widgets.
++ WARNING: Can't find TTatlas+tlrc or TTatlas.nii.gz dataset for 'whereami'!
++--------- See http://afni.nimh.nih.gov/pub/dist/data/
..... Input files:
 dataset count = 1
 Time series   = 0 files read
 Plugins       = 0 libraries read
 ** Your Unix path must include the AFNI binary directory
 ** OR you must setenv AFNI_PLUGINPATH to that directory!

++ WARNING: ~/.afni.log is now 23,683,342 (24 million) bytes long!
 +          (Is that you, Kevin?)

++ This version of AFNI was built Mar  1 2013 ++
++ 'Define Markers' is hidden: right-click 'DataDir' to see it

** AFNI concludes: What a long strange trip it's been!

randpermute.py: prepare a template text file for for ANOVA F test

If you don't have randpermute.py you can download it like this (linux terminal): cd abin; wget http://kurage.nimh.nih.gov/library/Meg/randpermute.py; cd; Here we run pots of ANOVAs with random assignments to conditions. First you have to make a template text file as in the example below:

################### the content of template.sh file
cmd:
3dANOVA -mask ~/SAM_BIU/docs/MASKbrain+tlrc -levels 2 $permute -ftr out

output:
out+tlrc

permute:
-dset $1 quad0501/alpha1+tlrc -dset $2 quad0501/alpha2+tlrc
-dset $1 quad0601/alpha1+tlrc -dset $2 quad0601/alpha2+tlrc
-dset $1 quad0701/alpha1+tlrc -dset $2 quad0701/alpha2+tlrc
-dset $1 quad0901/alpha1+tlrc -dset $2 quad0901/alpha2+tlrc
-dset $1 quad1001/alpha1+tlrc -dset $2 quad1001/alpha2+tlrc
-dset $1 quad1201/alpha1+tlrc -dset $2 quad1201/alpha2+tlrc
-dset $1 quad1401/alpha1+tlrc -dset $2 quad1401/alpha2+tlrc
-dset $1 quad1501/alpha1+tlrc -dset $2 quad1501/alpha2+tlrc
-dset $1 quad1601/alpha1+tlrc -dset $2 quad1601/alpha2+tlrc
-dset $1 quad1801/alpha1+tlrc -dset $2 quad1801/alpha2+tlrc
-dset $1 quad2001/alpha1+tlrc -dset $2 quad2001/alpha2+tlrc
-dset $1 quad2501/alpha1+tlrc -dset $2 quad2501/alpha2+tlrc
-dset $1 quad2601/alpha1+tlrc -dset $2 quad2601/alpha2+tlrc
-dset $1 quad2701/alpha1+tlrc -dset $2 quad2701/alpha2+tlrc
-dset $1 quad2901/alpha1+tlrc -dset $2 quad2901/alpha2+tlrc
-dset $1 quad3001/alpha1+tlrc -dset $2 quad3001/alpha2+tlrc
-dset $1 quad3101/alpha1+tlrc -dset $2 quad3101/alpha2+tlrc
-dset $1 quad3601/alpha1+tlrc -dset $2 quad3601/alpha2+tlrc
-dset $1 quad3801/alpha1+tlrc -dset $2 quad3801/alpha2+tlrc
-dset $1 quad4001/alpha1+tlrc -dset $2 quad4001/alpha2+tlrc
-dset $1 quad4101/alpha1+tlrc -dset $2 quad4101/alpha2+tlrc
-dset $1 quad4201/alpha1+tlrc -dset $2 quad4201/alpha2+tlrc

values:
1
2
###################

Running randpermute.py with a shell script

You run the following lines in bash terminal (no matlab here). Best to arrange the below lines in a script, say permute.sh. Execute it from the terminal by ./permute.sh . Dont forget to change permissions of .sh files to be executable.

# run n permutations, save output in a text file called permFval
randpermute.py -n 1001 -v template.sh > permFval
# get just the F values, write them to Fval file, sorted
grep '###' permFval | cut -f15- -d' ' | sort -g -r > Fval
# get the line with the 5% greatest F
old_IFS=$IFS
IFS=$'\n'
lines=($(cat Fval)) # array
IFS=$old_IFS
rowNum=($(awk 'END { print int(NR/20) }' Fval))

# clean directory
rm permFval
rm *corr*
rm Post_Pre_F+tlrc*
# run the real F test, call it Post_Pre_F
3dANOVA -mask /home/yuval/SAM_BIU/docs/MASKbrain+tlrc -levels 2 \
-dset 1 quad0501/alpha1+tlrc -dset 2 quad0501/alpha2+tlrc \
-dset 1 quad0601/alpha1+tlrc -dset 2 quad0601/alpha2+tlrc \
-dset 1 quad0701/alpha1+tlrc -dset 2 quad0701/alpha2+tlrc \
-dset 1 quad0901/alpha1+tlrc -dset 2 quad0901/alpha2+tlrc \
-dset 1 quad1001/alpha1+tlrc -dset 2 quad1001/alpha2+tlrc \
-dset 1 quad1201/alpha1+tlrc -dset 2 quad1201/alpha2+tlrc \
-dset 1 quad1401/alpha1+tlrc -dset 2 quad1401/alpha2+tlrc \
-dset 1 quad1501/alpha1+tlrc -dset 2 quad1501/alpha2+tlrc \
-dset 1 quad1601/alpha1+tlrc -dset 2 quad1601/alpha2+tlrc \
-dset 1 quad1801/alpha1+tlrc -dset 2 quad1801/alpha2+tlrc \
-dset 1 quad2001/alpha1+tlrc -dset 2 quad2001/alpha2+tlrc \
-dset 1 quad2501/alpha1+tlrc -dset 2 quad2501/alpha2+tlrc \
-dset 1 quad2601/alpha1+tlrc -dset 2 quad2601/alpha2+tlrc \
-dset 1 quad2701/alpha1+tlrc -dset 2 quad2701/alpha2+tlrc \
-dset 1 quad2901/alpha1+tlrc -dset 2 quad2901/alpha2+tlrc \
-dset 1 quad3001/alpha1+tlrc -dset 2 quad3001/alpha2+tlrc \
-dset 1 quad3101/alpha1+tlrc -dset 2 quad3101/alpha2+tlrc \
-dset 1 quad3601/alpha1+tlrc -dset 2 quad3601/alpha2+tlrc \
-dset 1 quad3801/alpha1+tlrc -dset 2 quad3801/alpha2+tlrc \
-dset 1 quad4001/alpha1+tlrc -dset 2 quad4001/alpha2+tlrc \
-dset 1 quad4101/alpha1+tlrc -dset 2 quad4101/alpha2+tlrc \
-dset 1 quad4201/alpha1+tlrc -dset 2 quad4201/alpha2+tlrc -ftr Post_Pre_F
# display result
echo
echo
echo "########## CRITICAL F ##########"
echo "           F = "${lines[$rowNum]}
